Halo-Lit Channel Letters.

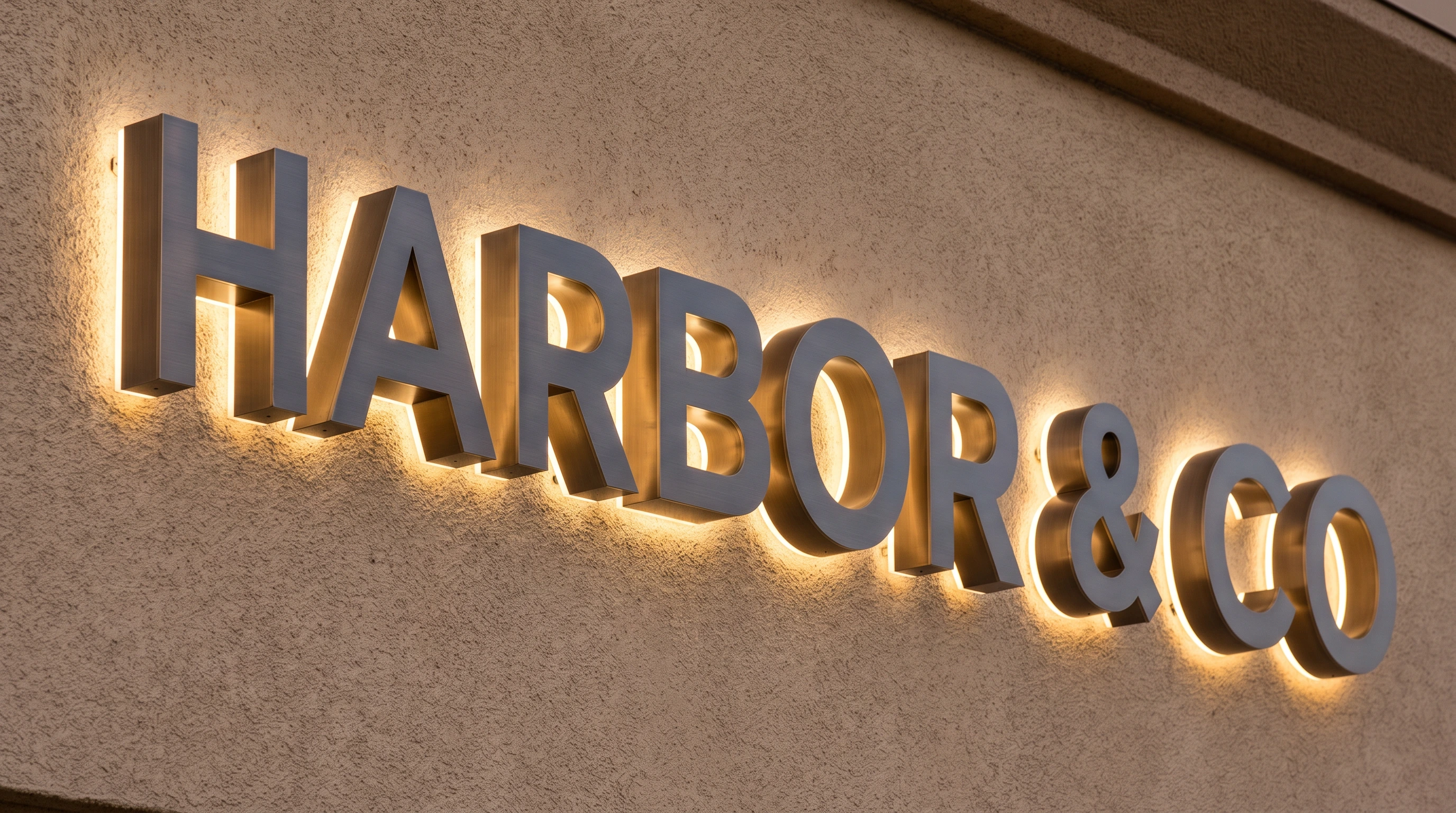

Light pours from behind — not through — the letter face, casting a soft halo glow on the wall behind. The result is architectural, sophisticated, and unmistakably premium. No visible face glow, just a luminous outline that reads beautifully in low light and looks stunning against stone, stucco, or modern cladding.
- Starts at: $475 minimum
- Best for: Hotels, corporate offices, churches, premium retail
- Warranty: 5-year LED, 2-year fabrication
How it's built
Solid aluminum face, deep returns, LEDs projecting backward.
Unlike front-lit letters, a halo-lit letter has a painted aluminum face (not acrylic) so no light escapes through the front. The returns are deeper — typically 5″ — to create the cavity needed for the back-mounted LEDs to spread an even glow on the wall behind. Letters stand off the wall on threaded studs so that halo has room to breathe. The effect is clean lines in daylight and a glowing silhouette at night.
.090″ aluminum, painted
Solid painted aluminum — no light through the face. Finished to your Sherwin-Williams color spec. Crisp edges, milled or laser-cut to letter shape.
.063″ aluminum, deep cavity
5″ standard depth — deeper than front-lit — to give LEDs room to spread before hitting the wall. Painted to match or contrast the face.
½″ to 1″ off the wall
Threaded standoff studs hold each letter away from the wall, creating the gap the halo needs to bloom. Standoff length is dialed to wall texture and finish.
Back-mounted white modules
UL-listed LED modules face backward, projecting onto the wall. White standard; warm white optional for hospitality applications. 80,000-hour rated life.
Colors & finishes
Two parts to color: face and returns.
Halo-lit letters have no trim cap and no acrylic face — color decisions are simpler. You pick a face color and a return color, and the wall behind becomes the lit canvas. Most architectural clients go with a tone-on-tone palette that disappears into the facade by day and reveals the halo at night.
Face color — 5 standards + custom
Painted .090″ aluminum. Standard Sherwin-Williams colors at base price; custom SW match adds a small fee.
Return color — 5 standards + custom
Returns are the sidewalls visible at letter depth. Most clients match the face for a monolithic look, or go one tone darker to add depth.
Sizes & pricing
Priced per inch of letter height.
Halo-lit letters carry a higher per-inch rate than front-lit because of the deeper returns, solid aluminum faces, and back-mount LED wiring. The result is worth it — no other channel letter achieves the same architectural quality.
| Spec | Standard | Notes |
|---|---|---|
| Letter height | 4″ to 60″ | Most architectural installs run 18″–36″ for maximum halo spread. |
| Return depth | 5″ standard | Deeper than front-lit — necessary for the halo cavity to develop evenly. |
| Rate per inch | $19.00/in (height) per letter | A 24″H letter is roughly $456 per letter before mount options. |
| Minimum order | $475 | Typical storefront set runs $3,500–$7,500 for a full word. |
Mounting
Three ways to mount — all keep the halo gap.
The standoff gap is what creates the halo — every mounting method preserves it. We'll specify the right method based on your wall construction and any landlord access rules.
Stud mount (standard)
Threaded studs extend from the letter back, go through the wall face, and bolt with hardware hidden inside the wall cavity. Creates the essential gap for halo development. Most common for concrete, brick, and stucco.
Pattern mount
A laser-cut drill template is shipped with the letters. Used for long word sets where consistent spacing and standoff depth matter. Crew drills from the template, then mounts each letter to pre-set anchors.
Raceway mount
Letters mount to a powder-coated aluminum raceway that conceals the power supply and wire run. Required by many landlords for shopping-center tenants. Raceway color matched to the building facade.
When to pick this
Best for
- Premium architectural storefronts and mixed-use buildings
- Hotels, boutique inns, and hospitality brands
- Corporate headquarters and professional offices
- Churches and institutions where dignified presence matters
Skip this for
- Bright daytime visibility priority → try Front-Lit
- Tight budget → try Front-Lit
- Historic district with no lit signage → try Sandblasted Cedar
Ready to design yours?
Pick your letter style, type your business name, and see the halo effect rendered at night in seconds.
